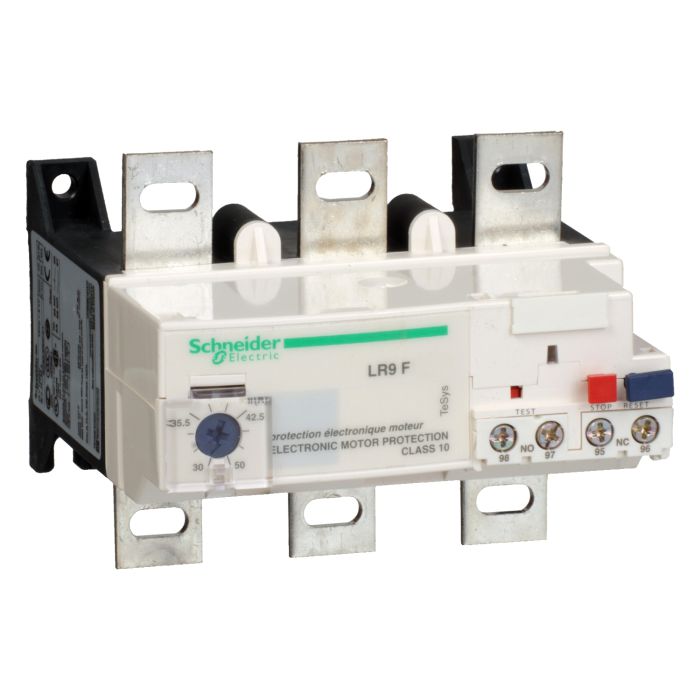

TeSys LRF - electronic thermal overload relay - 60...100 A - class 10 - LR9F5367
IDR6,824,000.00
In stock
SKU
LR9F5367
PRE ORDER
Duration Pre-Order : 30
Duration Pre-Order : 30
TeSys LR9F electronic overload relay, thermal setting range 60-100A, class 10, for protection of motors 37-45kW@400V. to be mounted directly below a TeSys F 3-pole contactor LC1 F115, F150, F185, use of a support mounting plate LA7F901 is recommended (to be ordered separately). Motor protection includes thermal overload of 1-phase and 3-phase motors, phase failure, phase unbalance, prolonged starting times, stalled rotor conditions. On the front of the relay, it provides a thermal adjustement dial, buttons for test, stop & reset, a trip indicator, trip auxiliary contacts 1NO+1NC. Multi standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHs/Reach).
| product or component type | electronic thermal overload relay |
|---|---|
| range | TeSys |
| device short name | LR9F |
| product name | TeSys LRF |
| product compatibility | LC1F115...LC1F185 |
| thermal protection adjustment range | 60-100 A |
| network type | AC |
| relay application | motor protection |
| thermal overload class | class 10 conforming to IEC 60947-4 |
