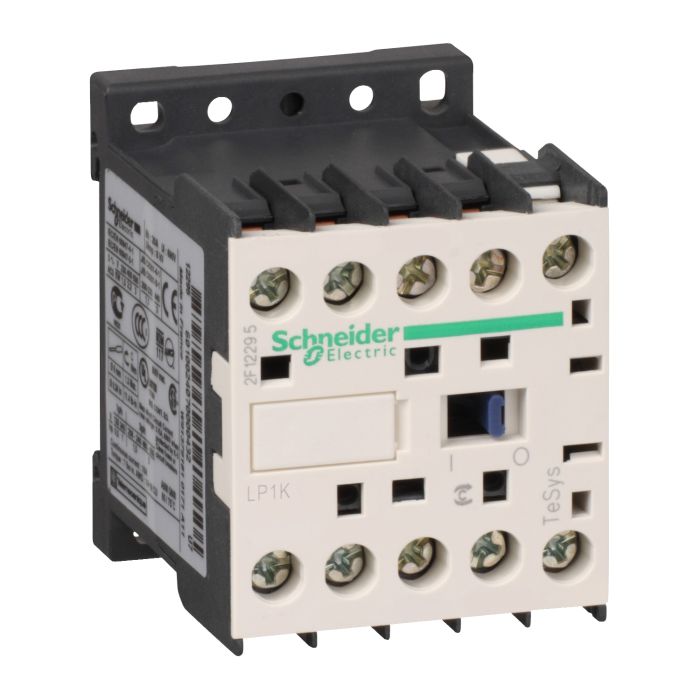

TeSys K contactor - 3P - AC-3 <= 440 V 6 A - 1 NO aux. - 24 V DC coil - LP1K0610BD
IDR322,000.00
In stock
SKU
LP1K0610BD
PRE ORDER
Duration Pre-Order : 30
Duration Pre-Order : 30
TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides a 24V DC coil, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
| range of product | TeSys K |
|---|---|
| product or component type | contactor |
| range | TeSys |
| device short name | LP1K |
| pole contact composition | 3 NO |
| [Ie] rated operational current | 6 A at <= 440 V AC AC-3 for power circuit |
| utilisation category | AC-3, AC-4 |
| poles description | 3P |
| contactor application | motor control |
| auxiliary contact composition | 1 NO |
