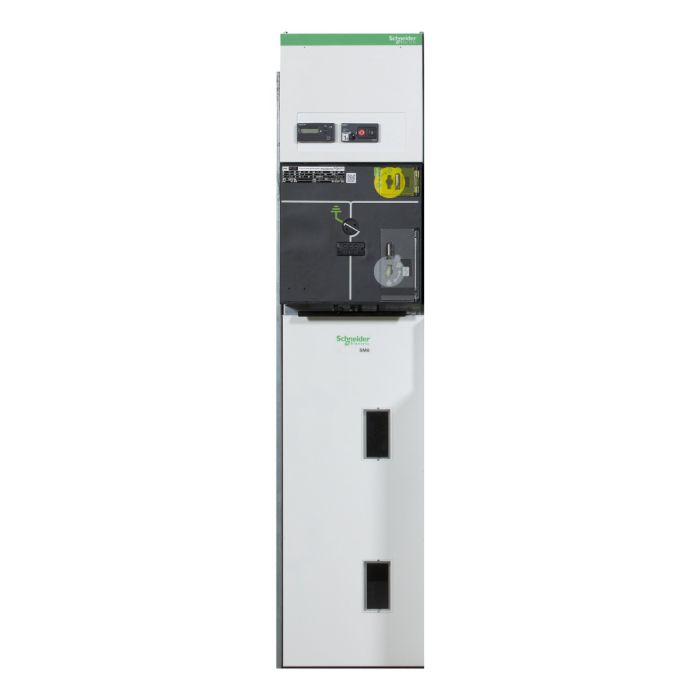

SM6-24 GAM2 without Earthing Switch + Lightning Arrester cubicle

Range of product: SM6

Technology type: Air insulated switchgear

Device short name: GAM2A 500

Product or component type: Case

Internal arc classification: AFL downward exhaust gas

Internal arc protection: 12.5 kA 1 s

Rated frequency (fr): 50 Hz

Rated voltage (Ur): 24 kV

Rated lightning impulse withstand voltage (Up): 125 kV peak

Rated continuous current (Ir): 630 A

Rated short-time withstand current (Ik): 16 kA rms 1 s

Standards: IEC 62271-200
