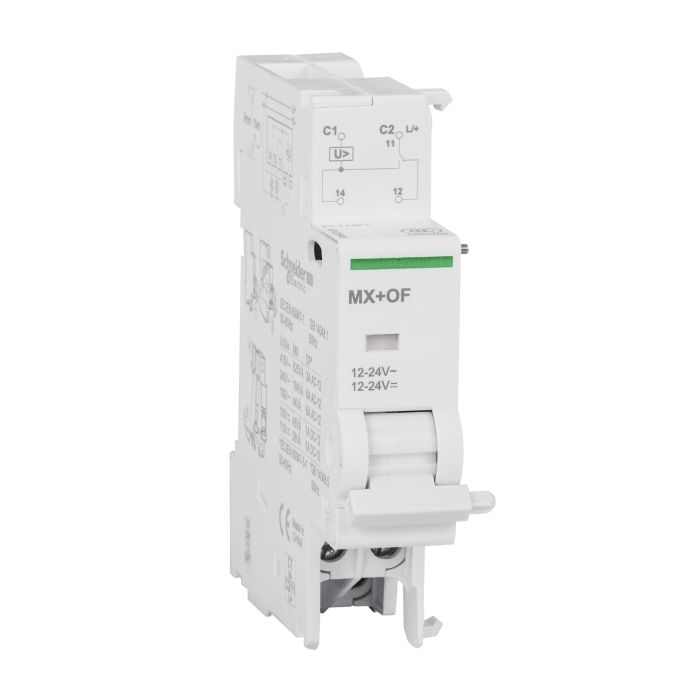

MX Shunt Trip MX plus 1 OF 24Vac dc - A9N26948

This Acti 9 MX+OF shunt trip release is an electric tripping auxiliary with open/close auxiliary contact. It is dedicated to C60, C120, DPN, DPN Vigi, C60H-DC, SW60-DC, C60PV-DC, C60NA-DC, C120NA. This device includes an open/close contact OF to indicate the position of the circuit breaker. Emergency stoppage by normally open pushbutton. It provides a remote indication of the position of the associated device. The product trips the associated device when it is powered on. The width in 9mm pitches is 2. There is a mechanical state indicator light, red on the front face. The Ue rated operational voltage is 24 to 24VDC or 12 to 24VAC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
