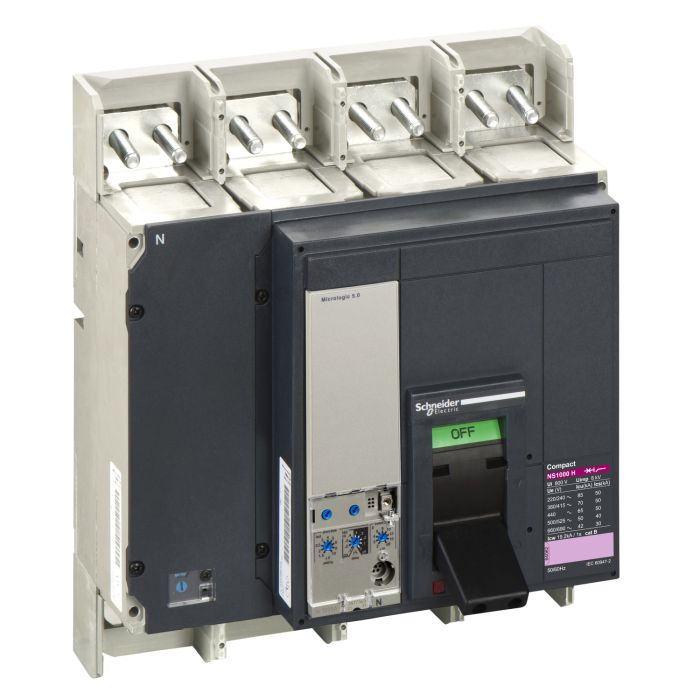

Compact NS > 630A circuit breaker NS1000H - Micrologic 5.0 - 1000 A - 4 poles 4t - 33562
IDR48,487,500.00
In stock
SKU
33562
PRE ORDER
Duration Pre-Order : 30
Duration Pre-Order : 30
| mounting mode | fixed |
|---|---|
| range of product | ComPact NS630b...1600 |
| product or component type | circuit breaker |
| range | ComPact |
| device application | distribution |
| device short name | Compact NS1000H |
| control type | rotary handle, toggle |
| trip unit name | Micrologic 5.0 |
| network frequency | 50/60 Hz |
| utilisation category | category B |
| [In] rated current | 1000 A at 50 °C |
| breaking capacity | 42 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| suitability for isolation | yes conforming to EN/IEC 60947-2 |
| network type | AC |
| breaking capacity code | H 70 kA 415 V AC |
| poles description | 4P |
| protected poles description | 4d |
| product name | ComPact NS |
| trip unit technology | electronic |
| neutral position | left |
| trip unit protection functions | LSI |
