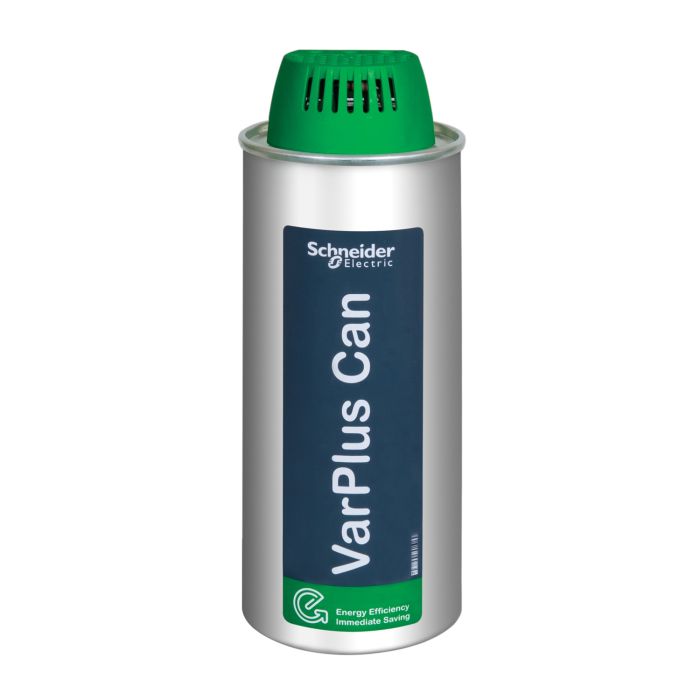

VarPlus Can HDuty Capacitor - 15/18 kvar - 400 V - 50/60Hz - BLRCH150A180B40
IDR2,317,000.00
In stock
SKU
BLRCH150A180B40
PRE ORDER
Duration Pre-Order : 30
Duration Pre-Order : 30
VarPlus Can capacitor are a reliable and flexible solution for power factor correction in stringent operating conditions. These capacitors are particularly used for higher voltage disturbances or when a few non-linear loads are present. The rated current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 13.5 kVar at 380V AC, 50 Hz. Fastening assured by a ClampTite terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The case product weight is 1.6 kg.
| range of product | VarPlus Can |
|---|---|
| product or component type | heavy duty capacitor |
| range | VarPlus |
| network frequency | 50/60 Hz |
| series name | HDuty |
| reactive power rating | 13.5 kvar 380 V 50 Hz, 15 kvar 400 V 50 Hz, 16.1 kvar 415 V 50 Hz, 16.2 kvar 380 V 60 Hz, 18 kvar 400 V 60 Hz, 19.4 kvar 415 V 60 Hz |
| network harmonic content | <= 20 % |
| maximum permissible voltage | 1.1 x Un (8 hours over 24 hours) |
| [Imp] maximum permanent current | 1.8 x In |
| rated voltage | 380-415 V AC 50/60 Hz |
